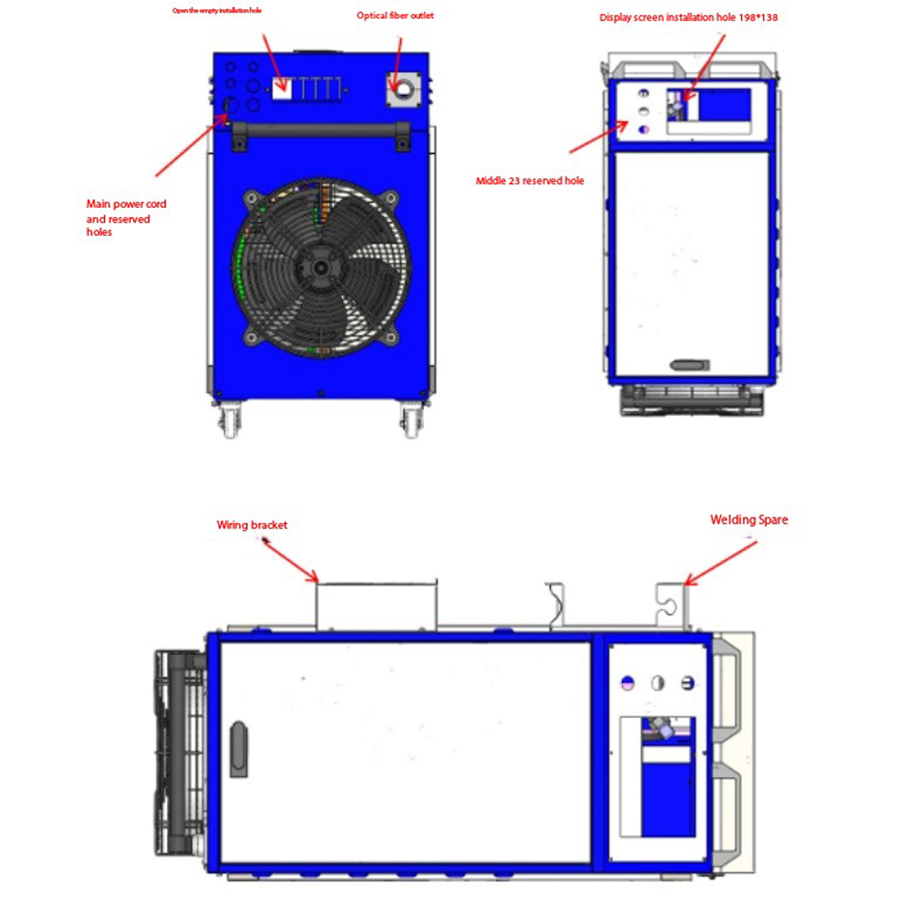

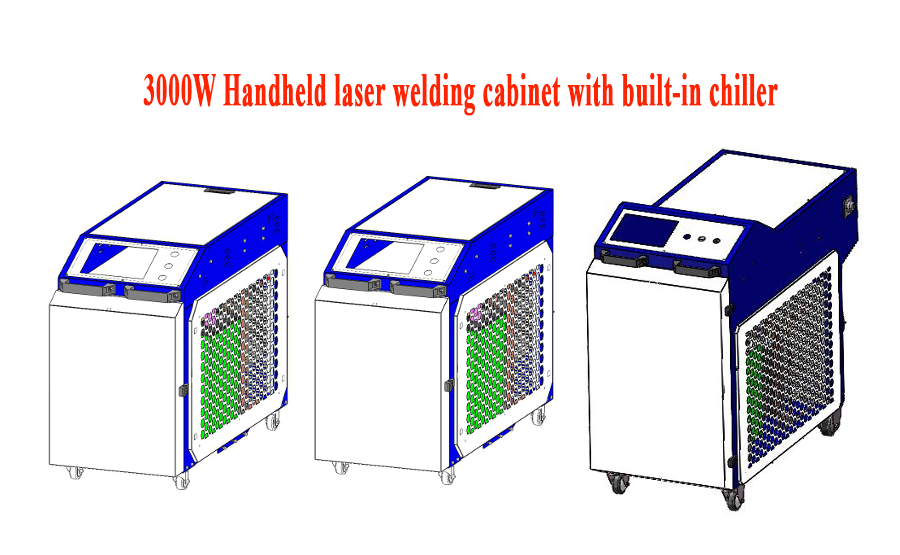

SCHYTJ-3000 Industrial Chiller for Fiber Laser Systems

The SCHYTJ-3000is a high-capacity industrial chiller built to provide efficient andreliable cooling for 3000W continuous fiber laser systems. Designed forboth 50 Hz and 60 Hz power environments, it ensures flexibility andcompatibility across global industrial setups.

Featuring a 7.2 kWcooling capacity, 600 W auxiliary heating, and ±1℃ temperaturecontrol accuracy, the SCHYTJ-3000 guarantees precise thermal stabilityunder diverse operating conditions (0℃–45℃, RH <95%). Its robust circulationsystem, with a 3 m3/h rated flow and a maximum head of 45 m, ispowered by a 0.55 kW water pump, ensuring strong and consistent waterdelivery.

The chiller isequipped with a 13 L water tank, G1/2 Φ20 mm pneumatic PU tubing,and a Φ6 mm QBH quick-plug connector, making it seamlessly compatiblewith major fiber laser brands such as Caplin, Maxphotonics, Raycus, and Reci.

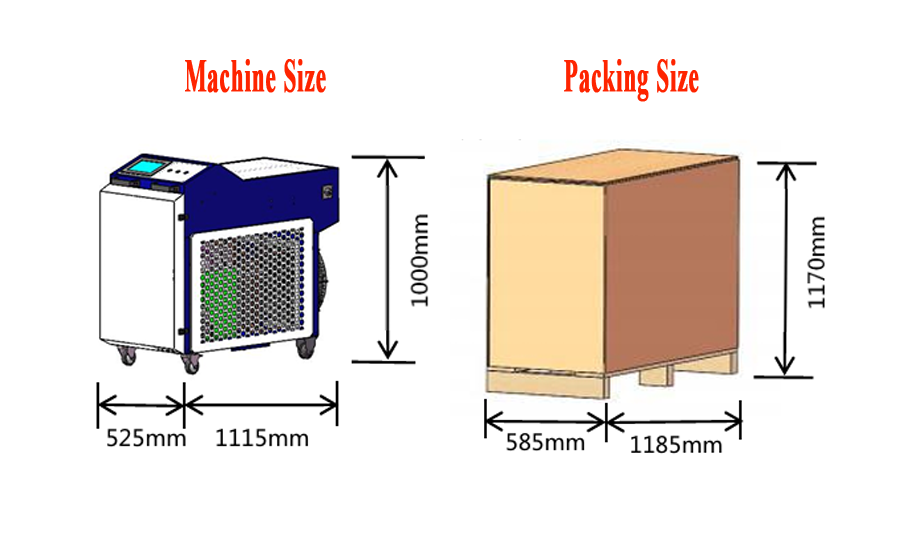

With dimensions of 1115× 525 × 1000 mm and a net weight of 78.5 kg, the SCHYTJ-3000 offersa compact yet powerful solution for heavy-duty laser operations. Packagedsecurely at 1185 × 585 × 1170 mm (gross weight: 94 kg), it isdesigned for easy installation and reliable transport.

Perfect for industriallaser cutting, welding, and high-precision processing, the SCHYTJ-3000delivers high-efficiency cooling, stable operation, and long-termreliability to support continuous laser performance.

Model	SCHYTJ-3000	SCHYTJ-3000
Operating Voltage	AC 1P 220 V	AC 1P 220 V
Operating Frequency	50 Hz	60 Hz
Operating Current	13.5 A	13.5 A
Total Power	3.9 kW	3.9 kW
Operating Environment	0℃ < Ambient Temperature < 45℃, Relative Humidity < 95%	0℃ < Ambient Temperature < 45℃, Relative Humidity < 95%
Temperature Control Accuracy	±1℃	±1℃
Refrigerant	R32	R32
Cooling Capacity	7.2 kW	7.2 kW
Electric Auxiliary Heating Power	600 W (normal temperature)	600 W (normal temperature)
Water Pump Rated Flow	3 m3/h	3 m3/h
Water Pump Maximum Head	45 m	45 m
Water Pump Power	0.55 kW	0.55 kW
Water Tank Capacity	13 L	13 L
Laser Piping	G1/2* Φ 20mm pneumatic PU tube	G1/2* Φ 20mm pneumatic PU tube
QBH Water Connector	Φ6 mm pneumatic quick-plug connector	Φ6 mm pneumatic quick-plug connector
Dimensions (L×W×H)	1115×525×1000(mm)	1115×525×1000(mm)
Net Weight	78.5 kg	78.5 kg
Package Dimensions	1185×585×1170(mm)	1185×585×1170(mm)
Gross Weight	94 kg	94 kg
Compatible Lasers	3000W continuous Fiber laser (Compatible with Caplin, Maxphotonics, Raycus, Reci, etc.)	3000W continuous Fiber laser (Compatible with Caplin, Maxphotonics, Raycus, Reci, etc.)

Our Service
Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customerquestions

After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide onlineservices to customers.

Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2. The middle layer is wrapping up with environmental protection material .
3. And the outermost layer is winding up with PE stretch film.
4. They're very environmentally friendly.
5. If you need a wooden box, we will make a wooden box.

Delivery Detail: Shipped in 25-30 working days after payment.
