Product Introduction

Laser cleaning is a new technology based on theinteraction between laser and material, which effectively removes contaminantsand attachments from the surface of objects. Compared with traditional cleaningmethods, laser cleaning offers non-contact operation, no damage to thesubstrate, precise cleaning, environmentally friendly performance, and theability for online operation. It is particularly suitable for high-speed, designated-area cleaning.

Our laser cleaning equipment represents a newgeneration of hightech surface treatment products, featuring easy installation, simple operation, and automation capability. The system requires no chemical agents, media, dust, or water. It provides high surface cleanliness, supports curved-surface cleaning, and is capable of removingresins, paints, oils, stains, rust, coatings, plating, and oxides. It is widelyapplied in shipbuilding, automotive repair, rubber molds, precision machinery,railways, and environmental industries.

Equipment Features

Non-contact cleaning, no damage to the substrate
Precise cleaning with accurate position and size control
No chemical solvents, no consumables, environmentally friendly
Simple operation, can be handheld or automated with a robot arm
Ergonomic design reduces operator fatigue
High efficiency, time-saving
Stable system, minimal maintenance required
Optional mobile battery module

Standards

Our company is ISO9001 certified and follows strict standards for product design, production, andservice. The system complies with relevant Chinese National Standards (GB/T)covering laser safety, electrical safety, power/energy testing, and environmentaltesting.

Operating Environment & TechnicalParameters (GY-FLC300SC)

Category	Specification
Power Supply	AC220V±10%, 50/60Hz (Output: DC48V)
	Battery, 200W, continuous 80 min
Power Consumption	≤1100W
Operating Temp.	5℃ – 40℃
Operating Humidity	≤80%

Optical Parameters

Parameter	Specification
Average Laser Power	≥300W
Power Instability	<5%
Laser Operation Mode	Pulsed
Pulse Width	13 – 500ns
Max. Single Pulse Energy	2mJ
Power Adjustment Range	0–100% (gradually adjustable)
Frequency Range	1 – 3000 kHz (gradually adjustable)
Fiber Length	1.5m
Cooling Method	Air cooling

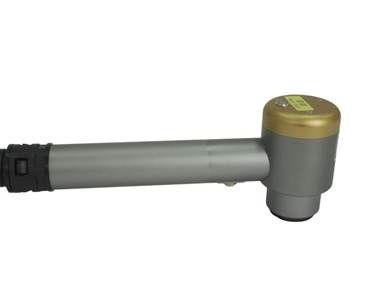

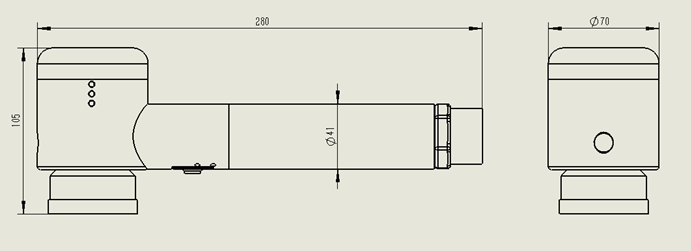

Cleaning Head Parameters

Parameter	Specification
Scanning Range (L×W)	0 – 145mm, continuously adjustable
Scan Modes	Dual-axis, 9 patterns
F-theta Lens Focal Length	210mm (Optional: 160 / 254 / 330 / 420mm)
Depth of Focus	~5mm

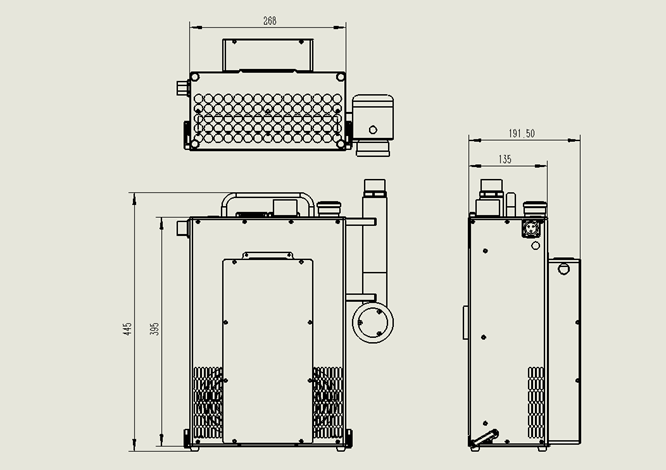

Mechanical Parameters

Parameter	Specification
Main Unit Size (W×D×H)	268×135×445mm (without battery) 268×191.5×445mm (with battery)
Package Size	~860×840×420mm
Weight (Main Unit + Head)	~13.47kg (without battery) ~18.08kg (with battery)
Package Weight (Carton)	~24kg (without battery) ~28.5kg (with battery)
Package Weight (Wooden Box)	~51kg (without battery) ~56kg (with battery)
Cleaning Head Weight	<0.75kg (without optics)
Operation Mode	Handheld
Control Mode	Wireless control panel
